PPR Pipe Elbow

PPR Pipe Elbow

PPR elbow is a kind of PPR connecting pipe. It is used for the connection at the bend of the pipeline to change the direction of the pipeline, usually by hot melt connection. When we encounter the need to change the direction of the pipe, we generally choose to use the elbow.
문의 보내기
Product Details ofPPR Pipe Elbow

Description

PPR elbow is a kind of PPR connecting pipe. It is used for the connection at the bend of the pipeline to change the direction of the pipeline, usually by hot melt connection. When we encounter the need to change the direction of the pipe, we generally choose to use the elbow.


Size/mm

Package/pcs

Weight/g

CBM/m²

203.4

200

172

0.092

254.2

140

252

0.092

325.4

80

417

0.092

In addition to the above regular sizes, we also have other sizes, welcome to inquire!

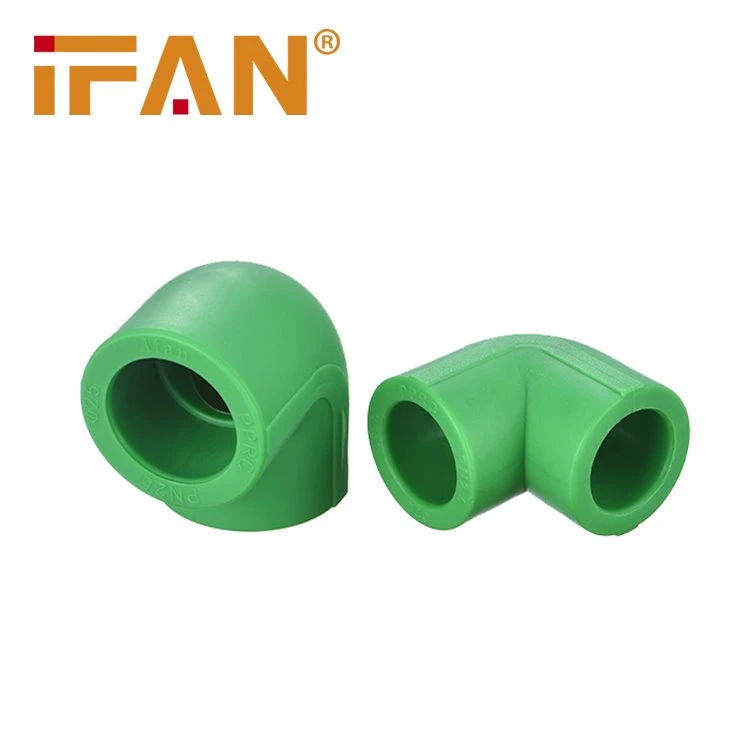

IFAN PPR Pipe Elbow1 (2)


Treatment method of PPR Pipe Elbow crack and leakage

1. Cut off the water and replace the elbow. Find PPR hot-melt welding wire and use a hot-melt gun to heat and weld. This consideration is technology. Generally, the welding of the female part should be cleaned up, and it is easy to leak if the control is not good.

2. Make a jig and wrap the entire elbow or leaking part. The jig should have a glue injection hole, which can be injected after the sealant has solidified.

3. The safest solution is to replace the fittings and pipes at the leaking position. Close the main valve, drain the water, use PPR scissors to cut off the pipeline at the leaking part, use a PPR blanching machine, and add a section directly.

4. Dry the leaking part, use waterproof cement, add a little water, keep it very thick and paste it on the leaking place in a large area.

5. Add water with polyurethane waterproof powder and apply it to the leaking area.

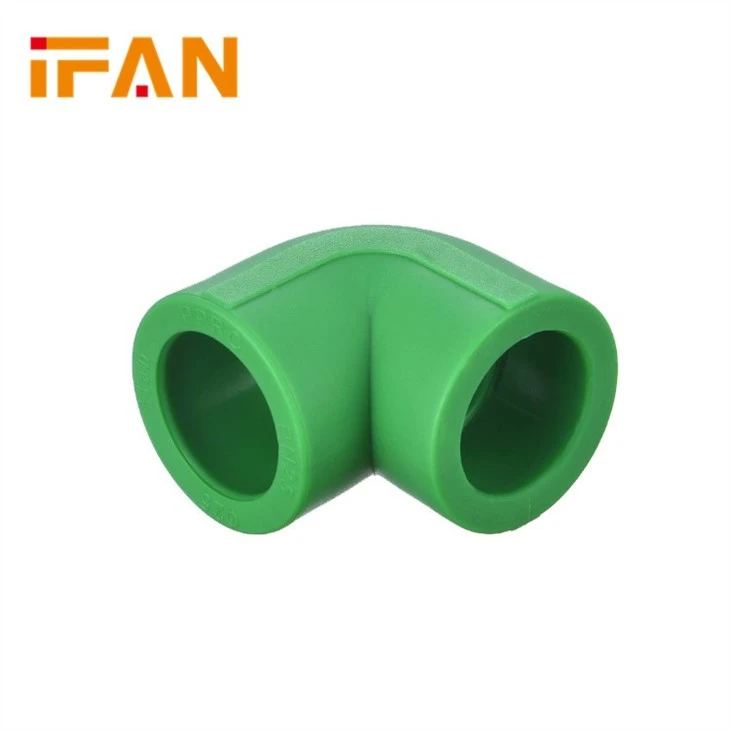

IFAN PPR Pipe Elbow1 (1)
